LPC4000

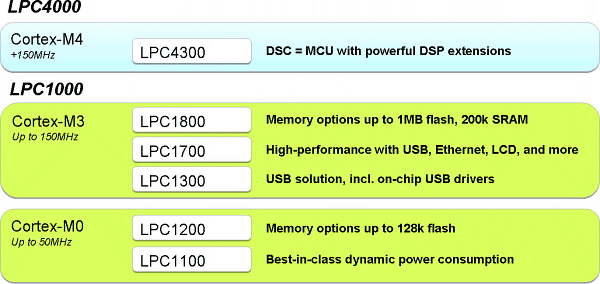

NXP's new LPC4000 Digital Signal Control (DSC) processors, based on the ARM® Cortex™-M4 microcontroller core, bring high-performance signal processing capabilities within the reach of the typical MCU programmer. The Cortex-M4 architecture was specifically developed to address digital signal control markets and combines the industry leading MCU capabilities of the Cortex-M3 family with specialized DSP instructions and capabilities. The LPC4000 series extends the NXP's rapidly growing portfolio of Cortex-M microcontrollers.

NXP 最新 LPC4000 数字信号控制(DSC)处理器,具有 ARM® Cortex™-M4 微控制器内核,在信号处理方面性能优异,不亚于典型的MCU。Cortex-M4 架构专门开发用于数字信号控制市场,把工业上主流Cortex-M3 系列的功能与专有DSP指令、功能结合在一起。LPC4000系列扩充了NXP快速增长的Cortex-M微控制器组合。

The new LPC4300 series, the world's first asymmetrical dual-core digital signal controller, features Cortex-M4 and Cortex-M0 processors and unique configurable peripherals that bring the advantage of developing DSP and MCU applications within a single architecture and development environment. It also offers pin compatibility with NXP's LPC1800 Cortex-M3 processors giving developers maximum flexibility in their design and development decisions.

最新LPC4300系列,世界上第一款非对称式双核数字信号控制器,具有Cortex-M4 和 Cortex-M0 的优点,并且独一无二可配置外围设备,其优势在于在单一架构、开发环境中开发DSP和MCU应用。同时,LPC4300提供了与LPC1800 Cortex-M3 处理器相兼容的引脚,给了开发人员在设计与开发决策上最大的自由。

  • Motor control
  • Power management
  • Industrial automation
  • Robotics
  • Medical
  • Automotive accessories
  • Embedded audio
  • 马达控制
  • 电源管理
  • 工业自动化
  • 机器人
  • 医疗设备
  • 汽车配件
  • 嵌入式音频

选型指南

Type number fmax[max](MHz) FLASH(kB) RAM(kB) I/O pins Nr.USB devices CAN UART I2C SPI Timers PWM Package name
LPC4310FBD144 204 0 168 83 0 2 4 2 1 4 1 LQFP144
LPC4310FET100 204 0 168 49 0 2 4 2 1 4 1 TFBGA100
LPC4320FBD100 204 0 168 49 1 2 4 2 1 4 1 LQFP100
LPC4320FBD144 204 0 200 83 1 2 4 2 1 4 1 LQFP144
LPC4320FET100 204 0 200 49 1 2 4 2 1 4 1 TFBGA100
LPC4330FBD144 204 0 264 83 2 2 4 2 1 4 1 LQFP144
LPC4330FET100 204 0 264 49 2 2 4 2 1 4 1 TFBGA100
LPC4330FET180 204 0 264 118 2 2 4 2 1 4 1 TFBGA180
LPC4330FET256 204 0 264 146 2 2 4 2 1 4 1 LBGA256
LPC4350FBD208 204 0 264 142 2 2 4 2 1 4 1 LQFP208
LPC4350FET180 204 0 264 118 2 2 4 2 1 4 1 TFBGA180
LPC4350FET256 204 0 264 164 2 2 4 2 1 4 1 LBGA256
LPC4357FET256 204 1024 136 164 2 2 4 2 1 4 1 LBGA256
