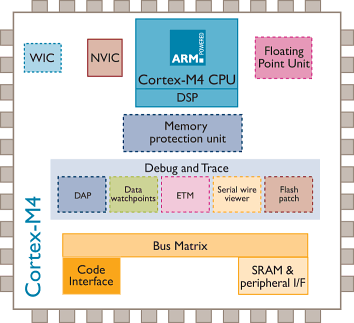

ARM Cortex-M4 core MCUs
The NXP Cortex-M4 family will be an important part of NXP's High Performance Mixed Signal portfolio, providing embedded system designers with easy-to-program 32-bit DSCs which are code- and tool-compatible with other NXP ARM-based MCU products. Implemented using an ultra low-leakage 90-nm process technology, the family will be the most energy efficient 32-bit embedded processors for digital signal controllers. NXP's Cortex-M4 processor-based family is planned to be introduced to the broad market at end of 2010.
NXP Cortex-M4系列是NXP高性能混合信号产品组合中重要的组成部分，向嵌入式系统开发人员提供易编程32位DSC，其代码、工具与NXP其他基于ARM的MCU产品都能兼容。由于使用超低漏 90nm 处理工艺，这个系列成为数字信号控制器最具能量效率的32位嵌入式处理器部件。NXP Cortex-M4 处理器系列计划在2010年末推向市场。
主要特性：
- 204 MHz，32-位 ARM Cortex-M4
- 204 MHz，32-位 ARM Cortex-M0 非对称协处理器
- 高达 1 MB Flash
- 高达 264 KB SRAM
- 存储保护单元
- 两个高速USB 2.0 接口，带有片上高速PHY
- 以太网MAC
- LCD接口
- 创新型SPI Flash接口
- 可配置时钟子系统
- 可配置系列GPIO
- 高达 146个GPIO
选型指南
| Type number | fmax[max](MHz) | FLASH(kB) | RAM(kB) | I/O pins | Nr.USB devices | CAN | UART | I2C | SPI | Timers | PWM | Package name |
| LPC4310FBD144 | 204 | 0 | 168 | 83 | 0 | 2 | 4 | 2 | 1 | 4 | 1 | LQFP144 |
| LPC4310FET100 | 204 | 0 | 168 | 49 | 0 | 2 | 4 | 2 | 1 | 4 | 1 | TFBGA100 |
| LPC4320FBD100 | 204 | 0 | 168 | 49 | 1 | 2 | 4 | 2 | 1 | 4 | 1 | LQFP100 |
| LPC4320FBD144 | 204 | 0 | 200 | 83 | 1 | 2 | 4 | 2 | 1 | 4 | 1 | LQFP144 |
| LPC4320FET100 | 204 | 0 | 200 | 49 | 1 | 2 | 4 | 2 | 1 | 4 | 1 | TFBGA100 |
| LPC4330FBD144 | 204 | 0 | 264 | 83 | 2 | 2 | 4 | 2 | 1 | 4 | 1 | LQFP144 |
| LPC4330FET100 | 204 | 0 | 264 | 49 | 2 | 2 | 4 | 2 | 1 | 4 | 1 | TFBGA100 |
| LPC4330FET180 | 204 | 0 | 264 | 118 | 2 | 2 | 4 | 2 | 1 | 4 | 1 | TFBGA180 |
| LPC4330FET256 | 204 | 0 | 264 | 146 | 2 | 2 | 4 | 2 | 1 | 4 | 1 | LBGA256 |
| LPC4350FBD208 | 204 | 0 | 264 | 142 | 2 | 2 | 4 | 2 | 1 | 4 | 1 | LQFP208 |
| LPC4350FET180 | 204 | 0 | 264 | 118 | 2 | 2 | 4 | 2 | 1 | 4 | 1 | TFBGA180 |
| LPC4350FET256 | 204 | 0 | 264 | 164 | 2 | 2 | 4 | 2 | 1 | 4 | 1 | LBGA256 |
| LPC4357FET256 | 204 | 1024 | 136 | 164 | 2 | 2 | 4 | 2 | 1 | 4 | 1 | LBGA256 |
