Cortex-M0 LPC1200系列微控制器

Powered by the smallest, most energy-efficient Cortex-M0 core, the LPC1200 provides compelling solutions for industrial control. The series includes up to 128 KB Flash and 8 KB SRAM, and offers configurable peripherals ideally suited for energy-efficient controls and appliances.

基于低功耗的Cortex-M0内核,LPC1200系列为工业控制提供了强有力的解决方案。该系列产品包 含高达128KB的FLASH、8KB的SRAM,并提供了适用于低功耗控制和应用的可配置外设。

NXP(恩智浦) LPC1200 系列

Key features:

  • * ARM Cortex-M0 processor
  • Up to 30 MHz CPU frequency with zero wait state from Flash
  • Nested Vectored Interrupt Controller (NVIC) supports ` 32 vectored interrupts with fast and deterministic latency
  • Three reduced-power modes: Sleep, Deep-sleep, and Deep power-down
  • * Memories
  • Up to 8 kB SRAM
  • Up to 128 kB Flash memory with 512 Byte page eraseSerial communication interfaces
  • * Serial communication interfaces
  • Two UARTs with fractional baud-rate generation and internal FIFO plus RS-485, modem, and IrDA supports
  • I2C with Fast-mode Plus for twice the devices on one bus and longer transmission distances } SSP (SPI) controller with FIFO and multi-protocol capabilities Analog peripherals
  • 10-bit Analog-to-Digital Converter (ADC) with eight channels and conversion rates up to 400 ksps
  • Two comparators, each with up to six selectable external sources, fully configurable on either positive or negative comparator input channels

主要特色:

  • * ARM Cortex-M0处理器
  • CPU频率高达30MHz,带有高速Flash(zero wait state)
  • 嵌套向量中断控制器(NVIC)支持32个向量中断
  • 3种省电模式:睡眠模式、深度睡眠模式、深度掉电模式(power-down)
  • * 存储器
  • 高达8KB的SRAM
  • 高达128KB的flash,带有512字节的页擦除(page erase)
  • * 系列通讯接口
  • 两个UART,包含波特率生成器、内部FIFO+RS-485,lrDA
  • I2C,快速模式两倍于一条总线的速度和传输距离
  • * SSP(SPI)控制器,支持FIFO、多种协议
  • * 模拟外设
  • 10位模数转换(ADC),8通道、转换速率高达400 ksps
  • 2个比较器,每个都可选择6个内部资源,正或负输入通道
  • * 其他外设
  • DMA控制器,21通道,支持板上RART、SPI、ADC、RTC、计数器/定时器、比较器、I2C、GPIO
  • 循环冗余检查(CRC)
  • 2个16位通用计数器/定时器,2输入、2输出
  • 看门狗定时器(WDT)
  • 32位实时时钟
  • 高达55个通用I/0(GPIO)
NXP(恩智浦) LPC1200 系列

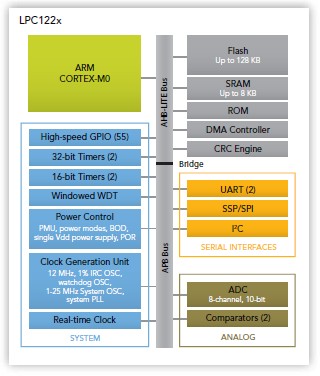

The LPC1200 series extends NXP’s 32-bit ARM microcontroller continuum by targeting a wide range of industrial applications in the areas of factory and home automation. The series offers a wide range of Flash memory sizes, from 32 to 128 KB, with 512 Bytes page erase. Benefitting from the ARM Cortex-M0 Thumb instruction set, the LPC1200 has up to 50% higher code density compared to common 8/16-bit MCUs performing typical tasks. The LPC1200 also features an optimized` ROM-based divide library for Cortex-M0, which offers code size saving and several times the arithmetic performance of software based libraries. The high efficiency of the Cortex-M0 core also helps the LPC1200 achieve lower average power for similar applications. The LPC1200 has up to 55 GPIO and new onboard peripherals including DMA, CRC, comparators, an RTC, and a 1% internal oscillator, which provides the accuracy needed for Baud rate generation.

LPC1200系列扩展了NXP(恩智浦)32位ARM微控制器的应用范围,包括工业、家庭自动化。该系 列提供了从32到128KB的FLASH存储器容量,带有512KB页擦除。得益于ARM Cortex-M0 Thumb指令 集,LPC1200比传统的8/16位MCU高出50%代码密度。针对Cortex-M0,LPC1200优化了ROM除法库, 其算法性能高出软件库数倍。Cortex-M0内核更让LPC1200具有更低的功耗。LPC1200有高达55个 GPIO,外设包括DMA、CRC、比较器、RTC,1%的内部振荡器,可满足波特率的精确需求。

LPC1200系列ARM选型表

Type number Product status fmax [max] (MHz) FLASH (kB) RAM (kB) I/O pins USB device CAN UART I²C SPI ADC Timers PWM Package name PLL VDD [min] (V) VDD [max] (V) CPU supply voltage (V)
LPC1224FBD48 Production 30 32 4 39 2 1 1 8 4 LQFP48 Y 3 3.6
LPC1224FBD64 Production 30 32 4 55 2 1 1 8 4 LQFP64 Y 3 3.6
LPC1225FBD48 Production 30 64 8 39 2 1 1 8 4 LQFP48 Y 3 3.6
LPC1225FBD64 Production 30 80 8 55 2 1 1 8 4 LQFP64 Y 3 3.6
LPC1226FBD48 Production 30 96 8 39 2 1 1 8 4 LQFP48 Y 3 3.6
LPC1226FBD64 Production 30 96 8 55 2 1 1 8 4 LQFP64 Y 3 3.6
LPC1227FBD48 Production 30 128 8 39 2 1 1 8 4 LQFP48 Y 3 3.6
LPC1227FBD64 Production 30 128 8 55 2 1 1 8 4 LQFP64 Y 3 3.6
LPC12D27FBD100 Production 3.00E+07 0 8 40 2 1 1 8 4 LQFP100 Y 3 3.6

Additional features:

  1. Programmable high-current output driver on four pins
  2. Processor wake-up from Deep-sleep mode via 12 port pins or peripherals interrupts
  3. Power-On Reset (POR)
  4. Brownout detect with four separate thresholds for interrupt and forced reset
  5. 12 MHz internal RC oscillator trimmed to 1% accuracy that can also be used as a system clock or Baud rate generatorPLL allows CPU operation up to the maximum CPU rate without the need for a high-frequency crystal. Can be run from the main oscillator, the internal RC oscillator, or the Watchdog oscillator
  6. Clock generation unit with divider that can reflect the main oscillator clock, IRC clock, CPU clock, and Watchdog clock.
  7. Available in 48- or 64-pin LQFP package

其他特色:

  1. 可编程控制引脚
  2. 可通过12引脚或外设中断把处理器从深度睡眠中唤醒
  3. 上电复位
  4. 中断或强制复位监测
  5. 12MHz内部RC振荡器,1%精确度,可作为系统时钟或波特率生成器
  6. PLL,可使CPU运行在最大CPU速率,无需高频率晶振。可用主振荡器、内部RC振荡器或看门狗 振荡器
  7. 时钟产生部件可影响主振荡器时钟、IRC时钟、CPU时钟、看门狗时钟
  8. 48或64引脚封装
