LPC11U00:彻底的USB解决方案
LPC11U00系列
Delivering robust USB performance at a low price point, LPC11U00 devices are compelling replacements for 8/16-bit USB microcontrollers.The highly flexible USB architecture is, quite simply, a better approach to USB, and the tiny (4.5 x 4.5 mm) TFBGA48 package is especially well suited for mobile and consumer applications. Like NXP’s other ARM-based USB solutions, the LPC11U00 series is supported by easy-to-use software and integrated development platforms that make NXP a one-stop shop for USB. The series is pin-compatible with Cortex-M3 LPC134x devices.
处于低价位却具有强劲的USB性能。LPC11U00将强行取代现有的8/16位USB微控制器。具有高度灵活性的USB架构，简单而更易于实现USB功能，4.5x4.5mm 的TFBGA48封装尤其适用于移动和消费电子。类似于NXP其他基于ARM的USB解决方案，LPC11U00系列配有简单易用的软件，集成了一站式USB开发平台。LPC11U00系列的引脚与Cortex-M3 LPC134x相兼容。
特点
- 50 MHz Cortex-M0 core Cortex-M0内核，50MHz
- Up to 32 KB Flash 高达32KB FLASH
- 6 KB SRAM 6KB SRAM
- USB 2.0 full-speed device controller 高速USB 2.0 设备控制器
- USART with fractional baud generation USART 小数波特生成器
- Smart Card interface (ISO 7816-3) 智能卡接口（ISO 7816-3）
- Two SSP interfaces, one I2C interface supporting Fast-mode Plus 2个SSP接口，1个I2C接口，支持高速模式+
- 8-channel, 10-bit ADC with input multiplexing among eight pins 8通道，10位 ADC，8个引脚多路输入
- Four general-purpose counter/timers, plus a programmable windowed Watchdog timer 4个通用计数器/定时器，一个可编程看门狗定时器
- Four reduced power modes: sleep, deep-sleep, power-down,deep power-down 4个省电模式：睡眠、深度睡眠、掉电、深度掉电
- On-chip, API-driven power profiles 片上、API驱动电源
- Up to 40 GPIO (configurable in groups) 40个GPIO
- Available in TFBGA48 package (4.5 x 4.5 mm) TFBGA48封装
- Superior code density compared to traditional 8/16-bit MCUs 相对8/16位MCU，具有更优异的代码密度
- Supported by NXP’s low-cost LPCXpresso toolchain 支持低成本的NXP LPCXpresso 工具链
- Pin-compatible with Cortex-M3 LPC134x devices 与Cortex-m3 LPC134X引脚兼容

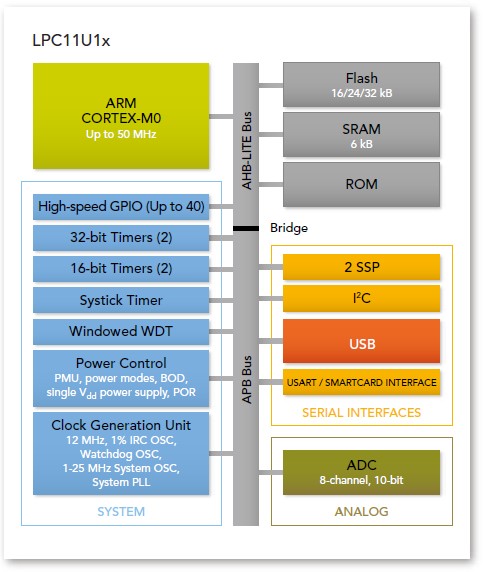

LPC11U1x
LPC11U00 选型指南
| Type | Memory | Timers | Serial interfaces | Analogy | I/O pins | Package | |||||
| Flash(KB) | RAM(KB) | No.of timers* | PWM channels | USB | UART | I2C | SSP/SPI | ADC | |||
| LPC11U14 | 32 | 6 | 5 | 11** | 1 | 1 | 1 | 2 | 8ch 10b | Up to 40 | HVQFN33,LQFP48,TFBGA48 |
| LPC11U13 | 24 | 6 | 5 | 11** | 1 | 1 | 1 | 2 | 8ch 10b | Up to 40 | LQFP48 |
| LPC11U12 | 16 | 6 | 5 | 11** | 1 | 1 | 1 | 2 | 8ch 10b | Up to 40 | HVQFN33,LQFP48 |
*包含看门狗定时器和实时时钟
**使用定时器
DATASHEET数据手册、MANUAL用户手册下载
